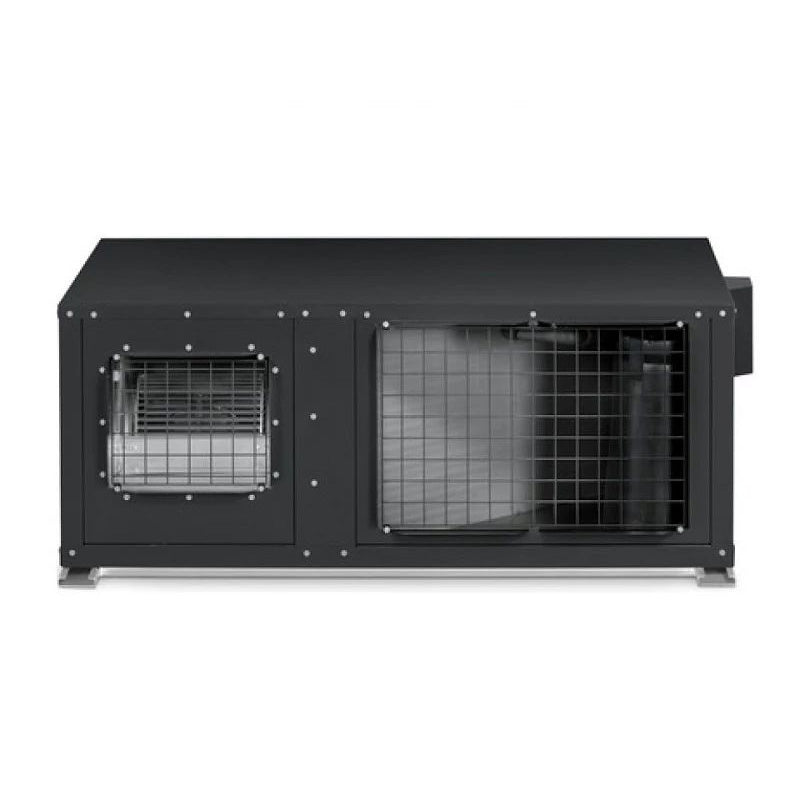

Hitachi IVX Centrifugal R410A 3 Phase Fan Heat Pump Indoor Concealed Condensing Unit
Hitachi IVX Centrifugal R410A 3 Phase Fan Heat Pump Indoor Concealed Condensing Unit
Regular price
£0.00
Regular price
£0.00
Sale price
£0.00
Unit price
per
Taxes included.
Product Overview: At a Glance
The Hitachi IVX Centrifugal R410A 3 Phase Fan Heat Pump Indoor Concealed Condensing Unit delivers high-efficiency heating and cooling with a versatile fan design. Ideal for multi-zone buildings, it combines compact installation with reliable, year-round performance.
Key Features & Benefits
- Suspended ducted split system - intake and discharge can be adjusted to suit site requirements, including same side or right-angle configurations.
- High pressure capability - up to 120 Pa for flexible installation in challenging layouts.
- Interchangeable air grilles - flexible placement of inlet and outlet for seamless integration.
- High seasonal efficiency - SCOP up to 3.98 and SEER up to 5.6 for reduced energy costs.
- Wide operating range - heating down to -15 °C, cooling from -5 °C to 46 °C.
- Multi-zone control - supports up to 6 indoor units with independent zone management.
- Intelligent defrosting - maintains optimal heating performance and comfort.
Typical Applications & Use Cases
Perfect for inner-city buildings, offices, and commercial properties where rooftop or exterior space is limited. Its compact design allows installation in false ceilings or equipment rooms, keeping the unit discreet while providing efficient climate control across multiple zones.
Technical Overview
The IVX Centrifugal Heat Pump features a suspended ducted split fan system with adjustable air intake and outlet. With SCOP up to 3.98 and SEER up to 5.6, it supports up to 6 independent indoor units and operates reliably in heating down to -15 °C and cooling up to 46 °C. The system is ideal for applications requiring high efficiency and flexibility in tight urban spaces.
Please contact us for delivery information & quotes. Thank you.
Items on this page may also be known under the following references:
- VRF IVX Centrifugal RASC-HNPE
- IVX RASC 2-Pipe Heat Pump Centrifugal
Additional Downloads:
No downloads available.
- Premium Aftercare
- Flexible Returns
- Fast Shipping
Technical Specifications (Click To Expand / Collapse)
| Model | Unit | RASC-4HNPE | RASC-5HNPE | RASC-6HNPE | RASC-8HNPE | RASC-10HNPE |
| Cooling performance | ||||||
| Nominal cooling capacity | kW | 10,00 | 12,50 | 14,00 | 20,00 | 24,00 |
| Nominal power input Cooling | kW | 2,99 | 3,98 | 5,09 | 7,41 | 9,02 |
| EER | - | 3,35 | 3,14 | 2,75 | 2,70 | 2,66 |
| SEER (Medium climate) | - | 5,60 | 5,43 | 5,22 | 5,39 | 5,48 |
| Seasonal cooling energy efficiency Ƞs, c | % | 221 | 214 | 206 | 212 | 216 |
| Operating range | °C | -5°C / +46°C (DB) | -5°C / +46°C (DB) | -5°C / +46°C (DB) | -5°C / +46°C (DB) | -5°C / +46°C (DB) |
| Heating performance | ||||||
| Nominal heating capacity | kW | 10,00 | 12,50 | 14,00 | 20,00 | 24,00 |
| Nominal power input Heating | kW | 2,95 | 4,12 | 5,74 | 7,00 | 8,52 |
| COP | - | 3,80 | 3,40 | 2,70 | 3,20 | 3,05 |
| SCOP (Medium climate) | - | 3,98 | 3,74 | 3,66 | 3,51 | 3,71 |
| Seasonal heating energy efficiency Ƞs, c | % | 156 | 146 | 143 | 137 | 145 |
| Operating range | °C | -15°C / +15,5°C (WB) | -15°C / +15,5°C (WB) | -15°C / +15,5°C (WB) | -15°C / +15,5°C (WB) | -15°C / +15,5°C (WB) |
| Technical data | ||||||
| Air flow rate (Cooling) | m3/h | 3300 | 3600 | 3600 | 6900 | 6900 |
| Available pressure (nom / max) | Pa | 56 / 90 | 72 / 100 | 100 / 100 | 84 / 120 | 102 / 120 |
| Sound power | dB(A) | 70 | 71 | 72 | 74 | 75 |
| Sound pressure in Cooling (night mode) | dB(A) | 52 (48) | 52 (48) | 53 (49) | 55 (51) | 56 (52) |
| Net weight | kg | 192 | 192 | 192 | 300 | 303 |
| Dimensions (H x W x D) | mm | 555 x 1515 x 1175 | 555 x 1515 x 1175 | 555 x 1515 x 1175 | 620 x 1850 x 1360 | 620 x 1850 x 1360 |
| Pipe diameter (Liq / Gas) | inch | 3/8 - 5/8 | 3/8 - 5/8 | 3/8 - 5/8 | 3/8 - 1 | 1/2 - 1 |
| Compressor | - | Scroll Inverter | Scroll Inverter | Scroll Inverter | Scroll Inverter | Scroll Inverter |
| Dimension grille (air intake) | - | 444 x 642 | 444 x 642 | 444 x 642 | 509 x 925 | 509 x 925 |
| Dimension grille (air discharge) | - | 288 x 334 | 288 x 334 | 288 x 334 | 337 x 398 | 337 x 398 |
| Minimum capacity of indoor unit | HP | 0,8 | 0,8 | 0,8 | 0,8 | 0,8 |
| Number of connectable units (min - max) | - | 1 - 5 | 1 - 5 | 1 - 5 | 1 - 6 | 1 - 6 |
| Refrigeration features | ||||||
| Refrigerant type | - | R410A | R410A | R410A | R410A | R410A |
| Initial refrigerant charge | kg | 4,1 | 4,2 | 4,2 | 5,7 | 6,2 |
| Max. piping length / additional refrigerant charge | m/(g/m) | 75 / see technical documentation | 75 / see technical documentation | 75 / see technical documentation | 100 / see technical documentation | 100 / see technical documentation |
| Precharged for | m | 30 | 30 | 30 | 30 | 30 |
| Maximum height difference (OU above/below) | m | 30 / 20 | 30 / 20 | 30 / 20 | 30 / 20 | 30 / 20 |
| Electrical data | ||||||
| Power supply | - | 400V / 3 Ph + N / 50Hz + N+ G | 400V / 3 Ph + N / 50Hz + N+ G | 400V / 3 Ph + N / 50Hz + N+ G | 400V / 3 Ph + N / 50Hz + N+ G | 400V / 3 Ph + N / 50Hz + N+ G |
| Maximum current | A | 14,1 | 14,1 | 16,0 | 24,7 | 24,7 |
| Size of power cable (EN 60 335-1) (1) | mm² | 5 x 4,00 | 5 x 4,00 | 5 x 4,00 | 5 x 6,00 | 5 x 6,00 |
| Indoor/outdoor connection (shielded) | mm² | 2 x 0,75 | 2 x 0,75 | 2 x 0,75 | 2 x 0,75 | 2 x 0,75 |
0
Total items
£0.00
Taxes included. Discounts and shipping calculated at checkout.
Product subtotal
Interested in this product?
Hitachi IVX Centrifugal R410A 3 Phase Fan Heat Pump Indoor Concealed Condensing Unit FAQs
What does inverter technology mean in HVAC?
Inverter systems adjust compressor speed to match demand, reducing energy use and maintaining a stable temperature more efficiently than fixed-speed units.
What’s the difference between single-phase and three-phase HVAC systems?
Single-phase systems are common in UK homes and small businesses, while three-phase systems are designed for larger commercial or industrial applications where higher power and efficiency are required.
What is a VRF system?
VRF (Variable Refrigerant Flow) systems allow multiple indoor units to be connected to a single outdoor unit, with each zone individually controlled. This makes them highly efficient and flexible for commercial and large residential projects.
What are the main benefits of VRF?
VRF offers energy efficiency, individual room control, quiet operation, and the ability to provide simultaneous heating and cooling across different zones.
Are VRF systems suitable for UK buildings?
Yes, VRF is widely used in UK offices, retail, hospitality, and multi-residential buildings thanks to its efficiency, modular design, and compatibility with varying climate conditions.
