Hisense Hi-FLEXi S Series R410A 3 Phase Outdoor Unit
Hisense Hi-FLEXi S Series R410A 3 Phase Outdoor Unit

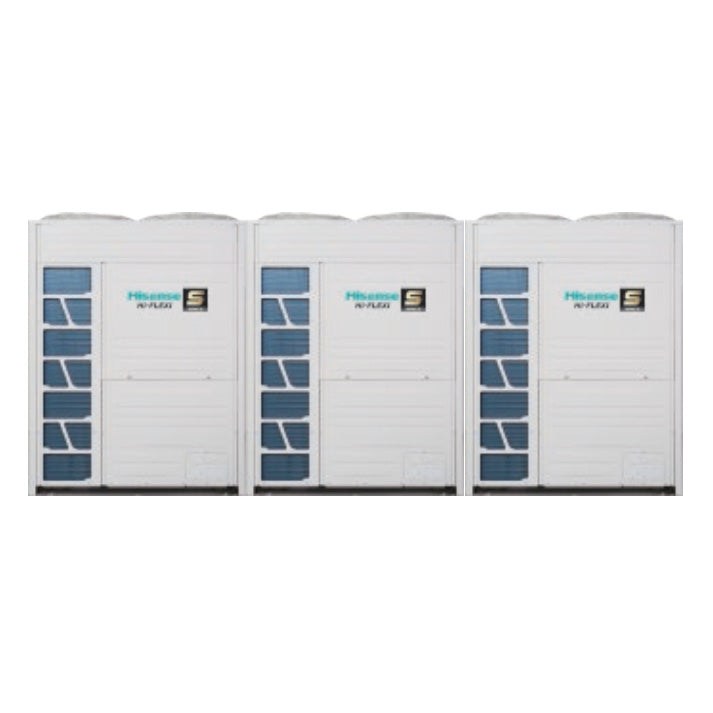

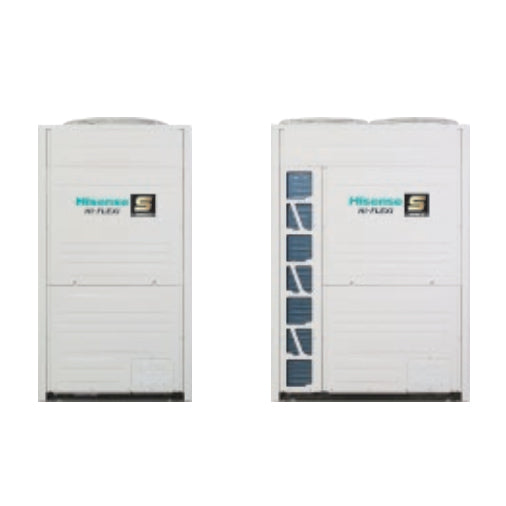

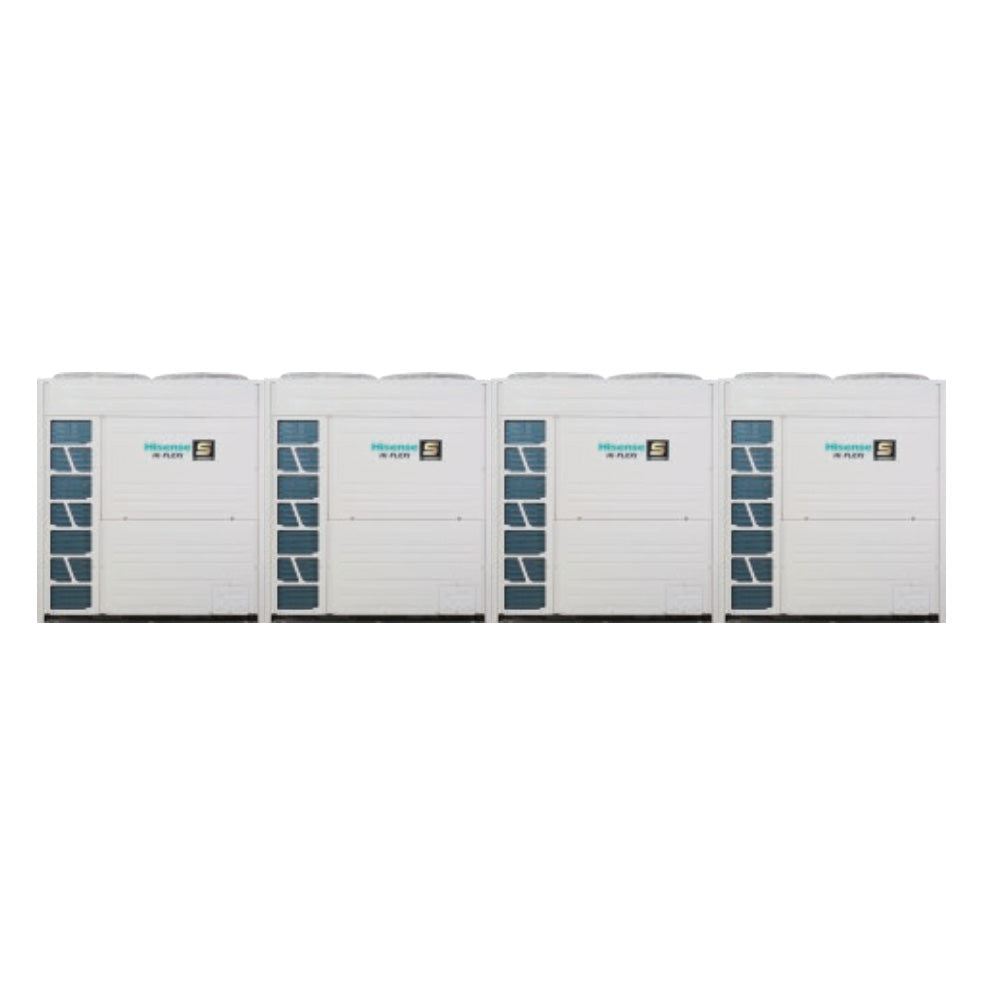

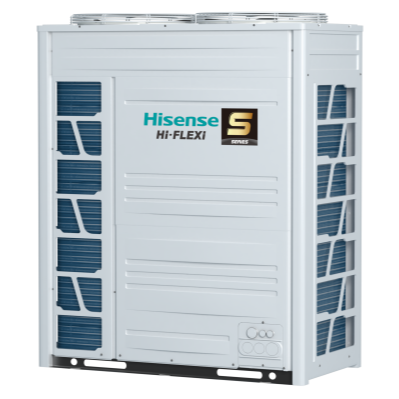

Hi-FLEXi S Series
Hisense Hi-FLEXi S series uses a new generation of enhanced vapor injection compressor and applies all DC inverter energy saving technology, which is energy-efficient with more powerful heating capacity.
New Generation of Enhanced Vapor Injection Scroll Compressors
Hisense Hi-FLEXi S series adopts a new generation of the high efficiency scroll compressor with the patented vapor injection technology. It can greatly enhances the heating performance and achieves high energy-saving efficiency. Powerful heating is guaranteed especially in low temperature conditions where heating capacity is increased by up to 25% compared to the normal model.
New G-type Heat Exchanger, Enhanced for High-efficiency Performance
The S series adapts the advanced G-type heat exchanger, which significantly enhances the heat exchange area. By using Φ7.0mm internal thread copper of high thermal conductivity and new fins, it can reduce the air flow resistance and greatly improves heat transfer efficiency.
Two-stage sub-cooling technology
The cooling section of the outdoor heat exchanger is uniquely designed to be more effective than the traditional outdoor units of the multi-split air conditioner without a sub-cooling design. First-stage sub-cooling can reduce temperature by 12.5℃. When enhanced by effecient subcooler at the second stage, the total temprature reduction can reach up to 27℃.
360° Fitted Refrigerant Cooling Technology
With the 360° refrigerant cooling technology, Hi-FLEXi S Series will remove the heat from the main PCB, making inverter module and electrical box stable and efficiency. New and integral heat sink can help to improve the electrical reliability of the unit when it is running under high ambient temperature.
Please contact us for delivery information & quotes. Thank you.
Items on this page may also be known under the following references:
No additional references found.
Additional Downloads:
No downloads available.
Efficiency Information
| SCOP Range | 3.85 - 4.24 |
|---|---|
| SEER Range | 7.53 - 8.67 |
Variant-Specific Efficiency
| Variant | SCOP | COP | SEER | EER |
|---|---|---|---|---|
| AVWT-76FKFSHA - 8HP | ||||
| AVWT-96FKFSHA - 10HP | ||||
| AVWT-114FKFSHA - 12HP | ||||
| AVWT-136FKFSHA - 14HP | ||||
| AVWT-154FKFSHA - 16HP | ||||
| AVWT-170FKFSHA - 18HP | ||||
| AVWT-190FKFSHA - 20HP | ||||
| AVWT-212FKFSHA - 22HP | ||||
| AVWT-228FKFSHA - 24HP | ||||
| AVWT-250FKFSHA - 26HP | ||||
| AVWT-272FKFSHA - 28HP | ||||
| AVWT-290FKFSHA - 30HP | ||||
| AVWT-308FKFSHA - 32HP | ||||
| AVWT-324FKFSHA - 34HP | ||||
| AVWT-340FKFSHA - 36HP | ||||
| AVWT-360FKFSHA - 38HP | ||||
| AVWT-380FKFSHA - 40HP | ||||
| AVWT-402FKFSHA - 42HP | ||||
| AVWT-424FKFSHA - 44HP | ||||
| AVWT-444FKFSHA - 46HP | ||||
| AVWT-462FKFSHA - 48HP | ||||
| AVWT-478FKFSHA - 50HP | ||||
| AVWT-494FKFSHA - 52HP | ||||
| AVWT-510FKFSHA - 54HP | ||||
| AVWT-530FKFSHA - 56HP | ||||
| AVWT-550FKFSHA - 58HP | ||||
| AVWT-570FKFSHA - 60HP | ||||
| AVWT-592FKFSHA - 62HP | ||||
| AVWT-614FKFSHA - 64HP | ||||
| AVWT-636FKFSHA - 66HP | ||||
| AVWT-648FKFSHA - 68HP | ||||
| AVWT-664FKFSHA - 70HP | ||||
| AVWT-680FKFSHA - 72HP | ||||
| AVWT-700FKFSHA - 74HP | ||||
| AVWT-720FKFSHA - 76HP | ||||
| AVWT-740FKFSHA - 78HP | ||||
| AVWT-760FKFSHA - 80HP | ||||
| AVWT-782FKFSHA - 82HP | ||||
| AVWT-804FKFSHA - 84HP | ||||
| AVWT-826FKFSHA - 86HP | ||||
| AVWT-848FKFSHA - 88HP |
Please always check the relevant and most recent data sheets before making a selection based on efficiency data. Contact us for more information.
